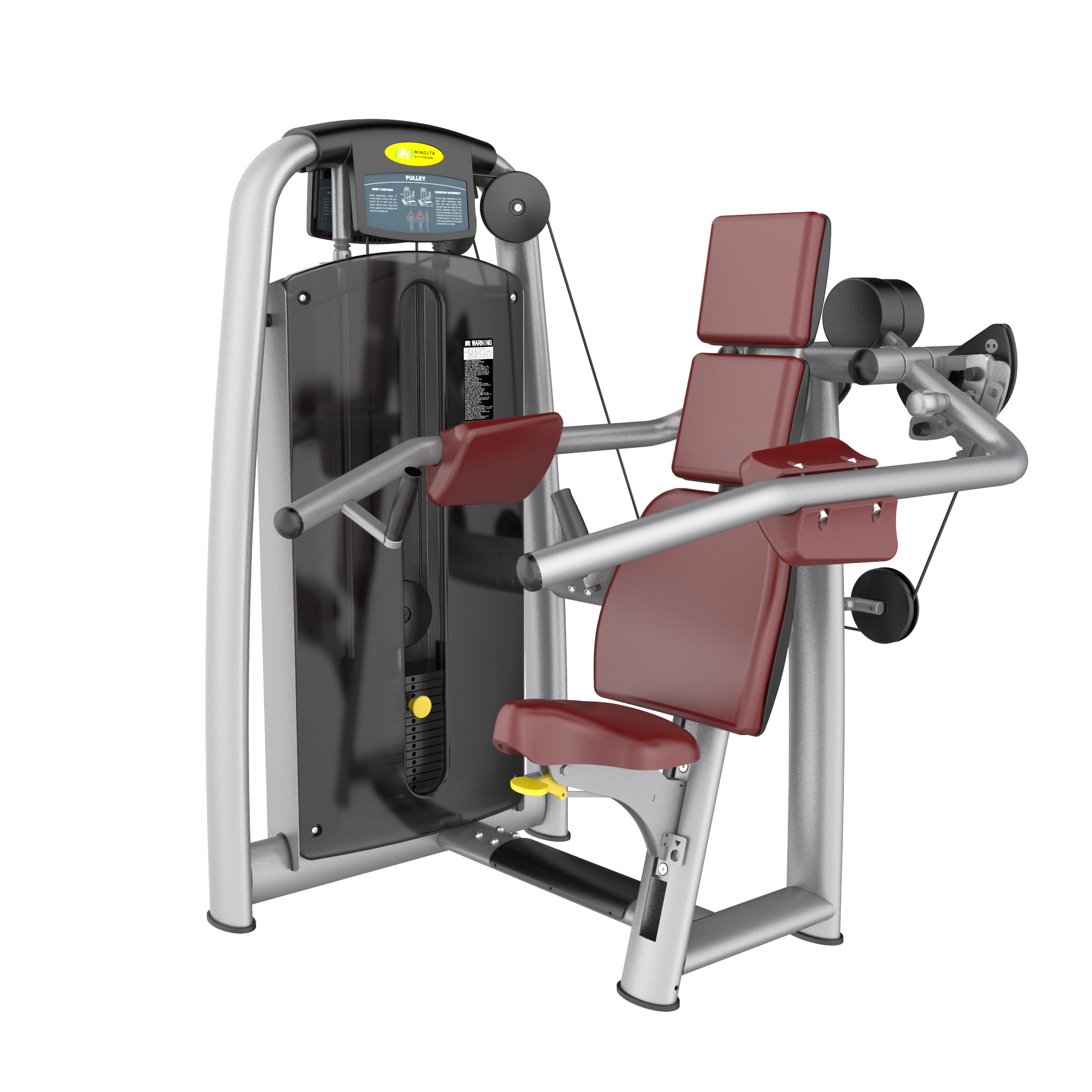

AN34 Commercial Delt Machine
Specialize in shoulder development with the AN34's precision isolation path that targets all three deltoid heads. The ergonomic seating and adjustable arm pads provide perfect alignment for optimal shoulder muscle engagement.
Model: AN34
Size (LxWxH): 1300 × 1040 × 1500 mm
Net Weight: 280 kg
Primary Muscles Trained: Anterior Deltoid, Medial Deltoid, Posterior Deltoid
| Quantity: | |
|---|---|
AN34
MND Fitness
950691
Product Overview
Complete Shoulder Isolation System
The AN34 features an innovative pivot system that maintains constant tension on the deltoids throughout the entire range of motion. The adjustable arm pads and precision cam system work together to deliver targeted shoulder development.
Precision Pivot System: Engineered movement isolates deltoid muscles
Adjustable Arm Pads: Multi-position pads accommodate different arm lengths
Variable Resistance Cam: Matches deltoid strength curve
Ergonomic Seating: Contoured seat with lumbar support
Commercial Construction: Heavy-duty steel frame
Product Description
Engineered for unilateral deltoid development, the AN34 integrates a precision pivot mechanism that sustain
s continuous tension across the deltoid muscles throughout the full range of motion. This design eliminates strength curve drop-offs common in conventional shoulder equipment, ensuring each repetition delivers maximal neuromuscular activation.
The system pairs adjustable arm pads with a variable resistance cam. The multi-position arm pads accommodate diverse limb lengths and joint kinematics, allowing users to maintain optimal biomechanical alignment. Simultaneously, the precision-machined cam profile mirrors the natural ascending-descending strength curve of the deltoid complex—from initiation through mid-range to terminal contraction.
Key Engineering Features
Precision Pivot System – Articulated movement path that fully isolates the anterior, lateral, and posterior deltoid heads.
Adjustable Arm Pads – Multiple positioning settings to tailor the lever arm length and joint angle for individual anthropometry.
Variable Resistance Cam – Non-linear cam geometry that dynamically matches the user’s torque output, providing a consistent loading stimulus.
Ergonomic Seating – Contoured seat shell with integrated lumbar support to stabilize the torso and prevent compensatory motion.
Commercial-Grade Construction – Heavy-duty welded steel frame finished with corrosion-resistant coating, rated for continuous high-volume use in professional fitness facilities.
The AN34 delivers targeted shoulder hypertrophy and strength gains, making it suitable for rehabilitation protocols, athletic performance training, and general commercial gym applications.
Product Specifications
| Product name | Delt Machine |
|---|---|
| Model Number | MND-AN34 |
| Assembled size | 1300*1040*1500 |
| Weight | 280KG |
| Weight stack | 100KG |
| Feature | 1) Main frame: it is welded with 60 * 120 * t3mm positive elliptical pipe diameter, with stable appearance and atmospheric shape. 2) Trajectory: the smooth trajectory is more in line with the principles of biomechanics and ergonomics. Guard board: the whole front guard board of the small door is made of acrylic plastic, and the back guard board is made of Q235 national standard coldrolled sheet 3) Cushion: excellent 3D polyurethane molding process; the surface is made of super fiber leather, waterproof and wearresistant; the color can be matched at will. 4) Handle: PVC soft rubber material, more comfortable grip. 5) Wire wheel: it is made of high quality PA material and injected with national standard high quality bearing, quiet, smooth and fatigue resistant. 6) Steel cable: high quality wearresistant special steel wire rope, 6mm in diameter, wrapped with PU wearresistant layer, 7 * 19 high quality steel wire |
| Function | 1) Strenght Exercise 2) Multi functional smith machine |
| Range of application | commercial gym use, fitness center use, home use or universal. |
| Color | Black, Gray, White, yellow, or customized |
| payment term | T/T, L/C at sight; 30% as deposit, and balance before shipment. |
| Delivery time | Usually 7-30 days after order confirmed and deposit received |
| MOQ | 1 unit |
| Container Loading Quantity | 20GP: 40HQ: also depends on your total order list, we will check total order packing volume to offer advice. |
| Warranty | 1-5 years warranty, please inquiry our sales for warranty table |
Frequently Asked Questions (FAQ)
Q1: How long about the delivery time?
A1:7-30 days, it depends on the order machine quantities. And for some models, we have ready stock.
Q2: What is the MOQ?
A2:One unit for heavy strength machines.
Q3: How about the payment?
A3:We accept T/T & L/C. At least 30% deposit when buyers place the order, 70% balance before shipment.
Q4: How about your after-service?
A4:When we ship the products, we will offer another more 2% free easy-worn parts for you. And during the warranty period, if any non-deliberate damage for the parts, we will send buyers the replacement for free.
Q5: Could you give advice if we offer the gym size?
A5:Sure, we have 15-Year experience in this field.
Q6: I don't know how to assemble the machines, could you help me?
A6:For Assembling, we have explosive maps, videos , pictures and Label No. pasted on the parts. It is easy for you to put equipment together. If further details are required, we will attempt to provide product matches with complete details for your reference.
