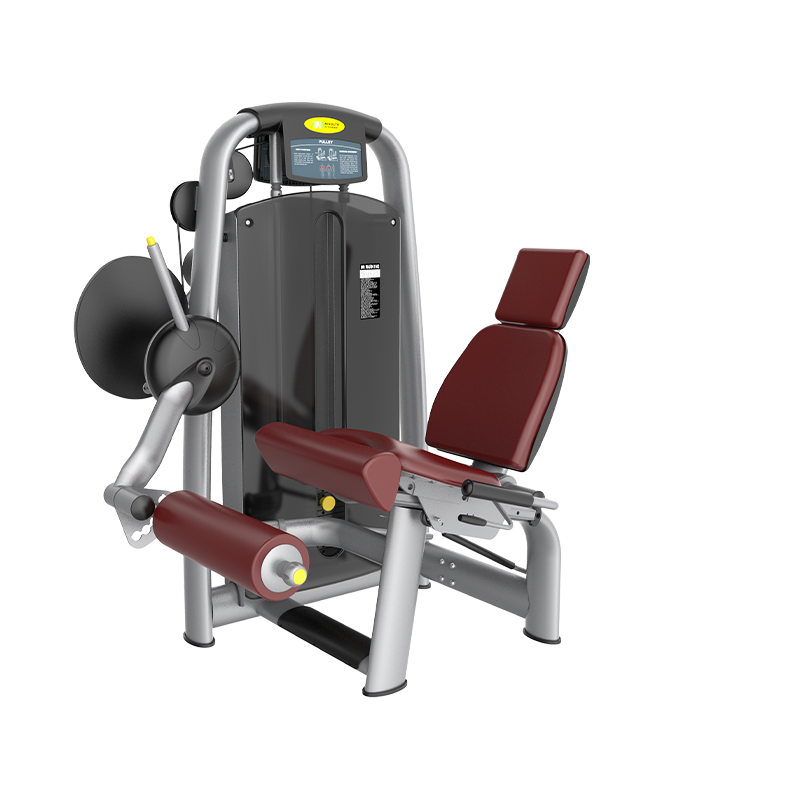

AN27 Commercial Seated Leg Extension Machine
Target quadriceps development with precision using the AN27's anatomically correct extension path. The ergonomic seat design and adjustable leg pad provide optimal positioning for maximum quadriceps isolation and growth.
Model: AN27
Size (LxWxH): 1270 × 1110 × 1500 mm
Net Weight: 255 kg
Primary Muscles Trained: Quadriceps, Rectus Femoris, Vastus Muscles
| Quantity: | |
|---|---|
AN27
MND Fitness
950691
Product Overview
Precision Quadriceps Isolation
The AN27 features a biomechanically optimized extension path that maintains constant tension on the quadriceps throughout the entire range of motion. The adjustable leg pad and precision pivot system ensure perfect form and maximum muscle activation.
Anatomical Extension Path: Precision-engineered movement isolates quadriceps
Adjustable Leg Pad: Multi-position pad accommodates different limb lengths
Supported Seating: Contoured seat with proper back alignment
Smooth Pivot System: Sealed bearings for fluid movement
Commercial Build: 60×120×3mm steel frame with reinforced joints
Product Description
The AN27 Seated Leg Extension is designed for precise quadriceps isolation training with a biomechanically optimized movement path. It ensures constant tension on the quadriceps throughout the full range of motion, maximizing muscle activation and training efficiency. The anatomical extension path promotes natural knee alignment, allowing users to train safely and effectively with controlled resistance.
Equipped with an adjustable leg pad system and precision pivot structure, the AN27 adapts to users of different heights and leg lengths while maintaining perfect exercise form. The supported seating design with contoured back support enhances stability and posture during training. Built with a heavy-duty commercial steel frame and a smooth sealed bearing pivot system, this machine delivers long-term durability, fluid motion, and professional-grade performance for any commercial gym environment.
Product Specifications
| Product name | Seated Leg Extension |
|---|---|
| Model Number | MND-AN27 |
| Assembled size | 1270*1110*1500mm |
| Weight | 255KG |
| Weight stack | 100KG |
| Feature | 1) Main frame: it is welded with 60 * 120 * t3mm positive elliptical pipe diameter, with stable appearance and atmospheric shape. 2) Trajectory: the smooth trajectory is more in line with the principles of biomechanics and ergonomics. Guard board: the whole front guard board of the small door is made of acrylic plastic, and the back guard board is made of Q235 national standard coldrolled sheet 3) Cushion: excellent 3D polyurethane molding process; the surface is made of super fiber leather, waterproof and wearresistant; the color can be matched at will. 4) Wire wheel: it is made of high quality PA material and injected with national standard high quality bearing, quiet, smooth and fatigue resistant. 5) Steel cable: high quality wearresistant special steel wire rope, 6mm in diameter, wrapped with PU wearresistant layer, 7 * 19 high quality steel wire. |
| Function | 1) Strenght Exercise 2) Multi functional smith machine |
| Range of application | commercial gym use, fitness center use, home use or universal. |
| Color | Black, Gray, White, yellow, or customized |
| payment term | T/T, L/C at sight; 30% as deposit, and balance before shipment. |
| Delivery time | Usually 7-30 days after order confirmed and deposit received |
Key Features & Highlights
Biomechanically Optimized Extension Path: Ensures full quadriceps isolation with constant muscle tension
Adjustable Leg Pad System: Multi-position settings for different user leg lengths and comfort needs
Supported Contoured Seating: Ergonomic seat design improves posture and training stability
Smooth Pivot Mechanism: Sealed bearings provide consistent, fluid movement
Heavy-Duty Commercial Frame: 60×120×3mm steel construction with reinforced joints for maximum durability
Frequently Asked Questions (FAQ)
Q1: How long about the delivery time?
A1:7-30 days, it depends on the order machine quantities. And for some models, we have ready stock.
Q2: What is the MOQ?
A2:One unit for heavy strength machines.
Q3: How about the payment?
A3:We accept T/T & L/C. At least 30% deposit when buyers place the order, 70% balance before shipment.
Q4: How about your after-service?
A4:When we ship the products, we will offer another more 2% free easy-worn parts for you. And during the warranty period, if any non-deliberate damage for the parts, we will send buyers the replacement for free.
Q5: Could you give advice if we offer the gym size?
A5:Sure, we have 15-Year experience in this field.
Q6: I don't know how to assemble the machines, could you help me?
A6:For Assembling, we have explosive maps, videos , pictures and Label No. pasted on the parts. It is easy for you to put equipment together. If further details are required, we will attempt to provide product matches with complete details for your reference.
